Aspect Aluminium supply and install Vertix EasySeam® Standing Seam Roof and Wall Systems

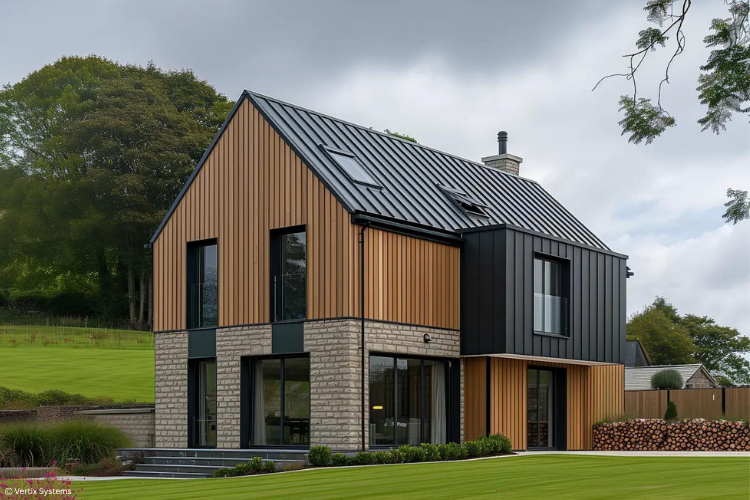

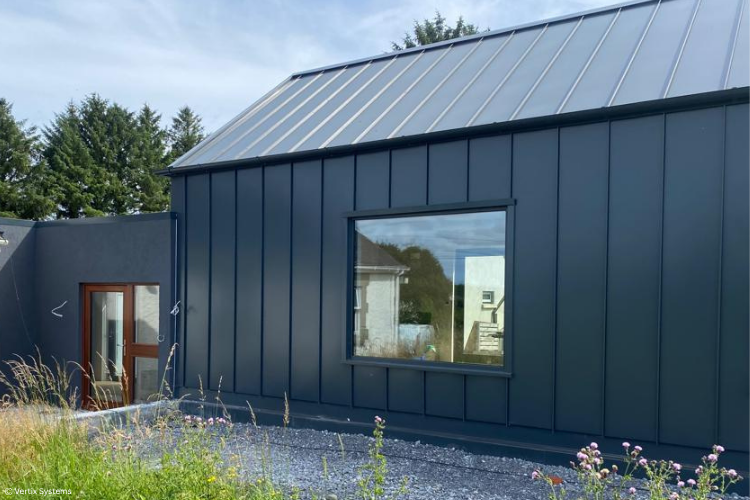

EasySeam® Roof and Wall Systems
Vertix Systems is a leading manufacturer of high-performance metal standing seam solutions. Drawing inspiration from centuries of architectural tradition, Vertix Systems combines timeless design principles with modern engineering to deliver robust, durable, and visually striking standing seam systems.
With a commitment to quality and innovation, Vertix Systems serves a wide range of sectors including residential, commercial, education, healthcare, and leisure. Their solutions are designed for both new builds and refurbishment projects, offering flexibility, longevity, and aesthetic appeal for contemporary architecture.

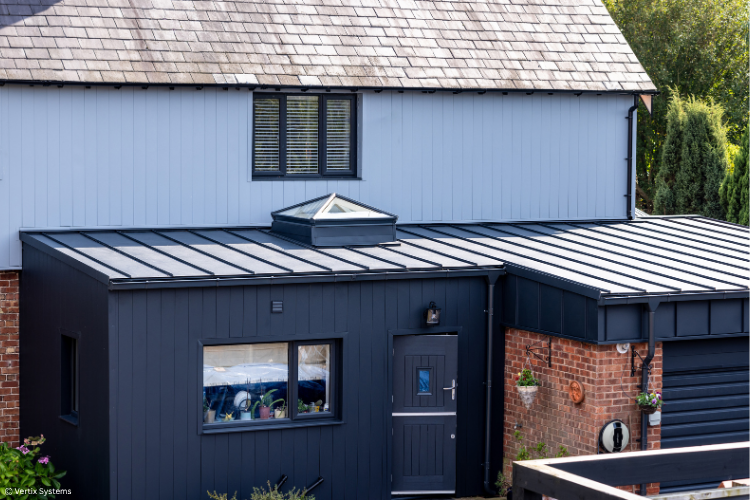

EasySeam® Metal Standing Seam Roof System
EasySeam® Roof System combines cutting-edge metal standing seam profiles with a robust and efficient design.
Delivered as a complete system, it includes all necessary components such as breather membrane, ridge, eaves and verge flashings, fixings, and sealant. This ensures flawless aesthetics, superior quality, and easy installation across the entire roof.
More information about Vertix EasySeam® Roof System including technical and installation guides can be accessed here
Along with the colours listed under each material option, other colours from Tata Steel and SSAB colour cards are available on request from Vertix Systems, subject to longer lead times and minimum order quantities.
Download the colour cards below
Along with the colours listed under each material, other colours from Tata Steel and SSAB colour cards are available on request from Vertix Systems, subject to longer lead times and minimum order quantities.
Vertix Systems can supply Tata Steel Colorcoat Prisma® in Anthracite, Black, Slate Grey, Helios, Ephyra, Ariana, Sirius Matt, Orion Matt and Seren Copper.
Vertix Systems can supply Colorcoat HPS200 Ultra® is available in Anthracite Matt.
Vertix Systems can supply SSAB GreenCoat® Pural BT in Slate Grey Matt, Stone Grey Matt and Nordic Black.
Material Guarantees
Colorcoat Prisma® and Colorcoat HPS200 Ultra® by Tata Steel come with 25 year Confidex® Home Guarantee. This is the market leading pre-finished steel guarantee and applies regardless of location.
SSAB offers a more general 25 year guarantee for GreenCoat® Pural BT that covers inland applications. Coastal applications are subject to agreement.
Key features
- Engineered system that is manufactured to order, reducing onsite waste.
- 4 different EasySeam profiles, each with a 25mm high seam.
- Available in a choice of pre-finished steel options and colours, depending on building application; Tata Steel Colorcoat Prisma and Colorcoat HPS200 Ultra ; SSAB Greencoat Pural BT.
- Suitable for roof pitches between 5 and 45 degrees.
- Available in 300mm and 500mm widths.
- Up to 8 metre lengths available.
- Snap and lock system enables quick and easy installation.
- Notches and tabs at both ends of the profile allow the seam to be sealed from the elements
- Profiles can be laid firmly onto 18mm Oriented Strand Board (OSB) 3 on top of a breathable membrane, with no requirement for additional brackets.
- Fixings are hidden by the adjacent profile, delivering a stylish and sleek appearance that is typical of a standing seam roof.
- Up to 7x lighter than roof tiles, improving site handleability and reducing final roof weight.
- Suitable for integration with renewable technologies including Photovoltaics.
- Compatible with rainwater harvesting systems.
- Achieves BRoof (t4) fire rating.
- CE marked to EN14783.
- Matching soffits and facias available.

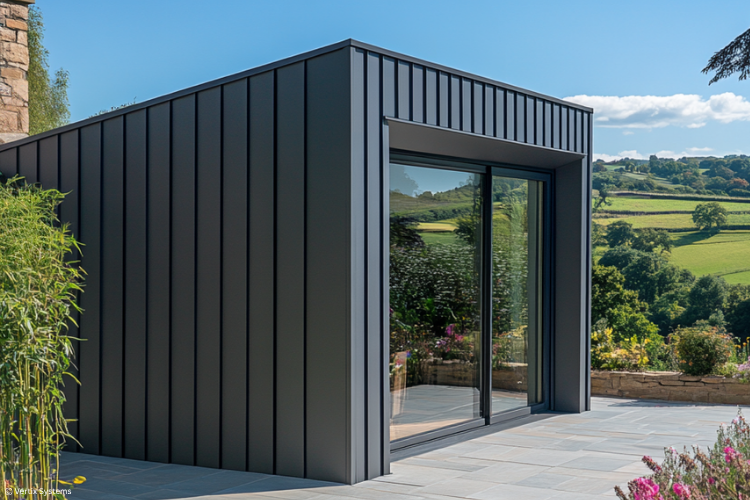

EasySeam® Wall Cladding System
EasySeam® Wall Cladding System is a premium standing seam metal cladding solution designed for residential and commercial use. Engineered for durability, contemporary aesthetics, and fast installation, it’s an ideal choice for those seeking a versatile and modern facade cladding solution for their project.
The EasySeam® wall profile is supported by and fixed to an 18mm Oriented Strand Board (OSB) 3 and a breathable membrane. For improved fire performance, a galvanised steel deck can be used in place of the OSB 3 board.
EasySeam® Wall Cladding System uses a metal standing seam profile to offer a robust and durable solution that’s quick and easy to install. Offered as a complete system EasySeam Wall Cladding System includes breather membrane, corner and window flashings, fixings and sealant, ensuring you get the very best aesthetics and quality for your walling project.
Key features
- Engineered system that is manufactured to order, reducing on site waste.
- 3 different EasySeam® profiles, each with a 25mm high seam.
- Available in a choice of pre-finished steel options and colours with appropriate material guarantees,, depending on building application; Tata Steel Colorcoat HPS200 Ultra® and Colorcoat Prisma®; SSAB Greencoat® Pural BT.
- Available in 300mm and 500mm widths.
- Up to 8 metre lengths available.
- Profiles can be laid horizontally or vertically to achieve a range of aesthetic effects.
- Snap and lock system enables quick and easy installation.
- Profiles can be laid firmly onto 18mm Oriented Strand Board (OSB) 3 or galvanised steel deck on top of a breathable membrane, with no requirement for additional brackets.
- Fixings are hidden by the adjacent profile, delivering a stylish and sleek appearance
- CE marked to EN14783.
- Can achieve A1 fire rating when supported by galvanised steel deck, using the linear approach with items tested separately.
More information about Vertix EasySeam® Wall Cladding System including technical details can be accessed here
Vertix and EasySeam are trademarks of Vertix Systems Ltd
Colorcoat, Colorcoat HPS200 Ultra, Colorcoat Prisma and Confidex Home are trademarks of Tata Steel UK Ltd
GreenCoat and Pural are trademarks of SSAB group of companies
